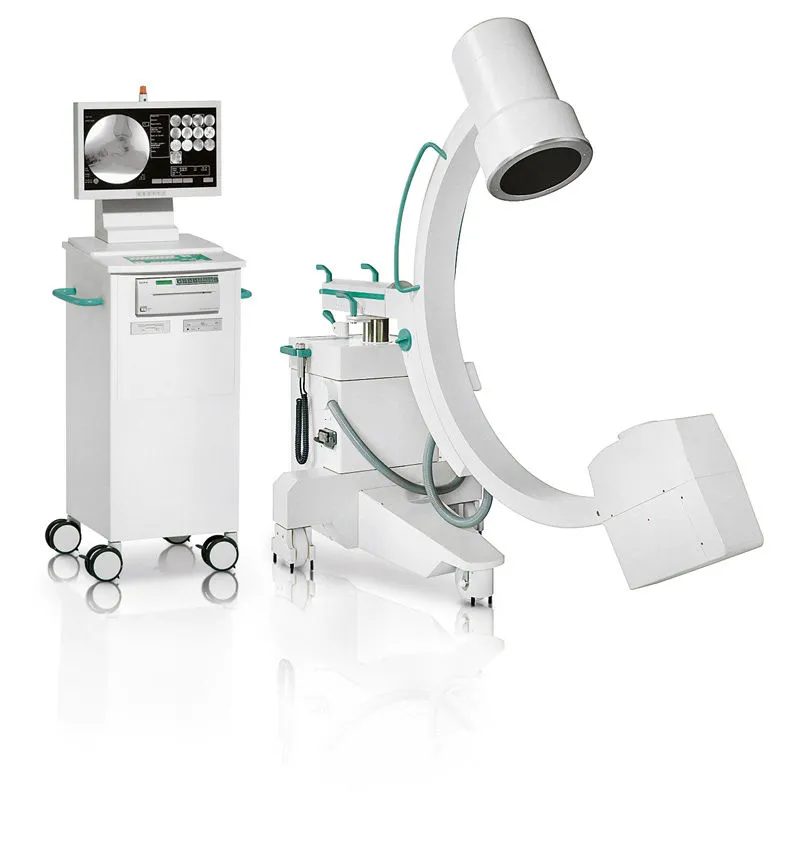

ZIEHM EXPOSCOPE 7000

Description

Features:

High frequency x-ray generator 20,000 Hz
9/6″ dual field image intensifier
Body region and application-specific keys – Extremities, Chest, Head, Spine, Hip, Metal,
Soft tissue, 1/2 dose
17” Monitor (anti-glare) 120 Hz
5” Slave Control Monitor on back of TV monitor (for technician)
Black and White Video Graphic Paper Printer (Optional)
Power :
Fluoroscopy: 40–110 kV / 0.1–6 mA – 40–110 kV / 0.1–6 mA
Direct radiography: 40–110 kV / 18–20 mA
Operating Frequency: 20 kHz

Other Features:

Iris and slot collimator
Fluoroscopic operation from 40 kV to 110 kV at 0.2 – 6 mA and pulse modes
Radiographic operation from 40 kV to 110 kV at 20 mA
8 ma mode for a special procedure
Image rotation
17” Monitor (anti-glare) 120 Hz
5” Slave Control Monitor on back of TV monitor (for technician)
Frame image storage
Last image hold
Integrated cable pushers allow for easy maneuverability and positioning
Large Patient Diameter Key

Printer options:

Normal mode will print the image exactly as it appears on the display.
Small mode will reduce two images and prints side by side.
Zoom 1.5x mode will print the image after expanding it 1.5 times.
Zoom 2X mode will print the image after expanding it 2.0 times vertically and
horizontally.
Large mode extracts a vertical strip from the center of the screen, and prints it after
expanding it 2.0 times vertically and horizontally.
Fluoro Boost
Vascular
DSA
Road Mapping
1000 Image Storage
Dual High Res Monitors
Touch Control Panel
6/9 Inch Image Intensifier
