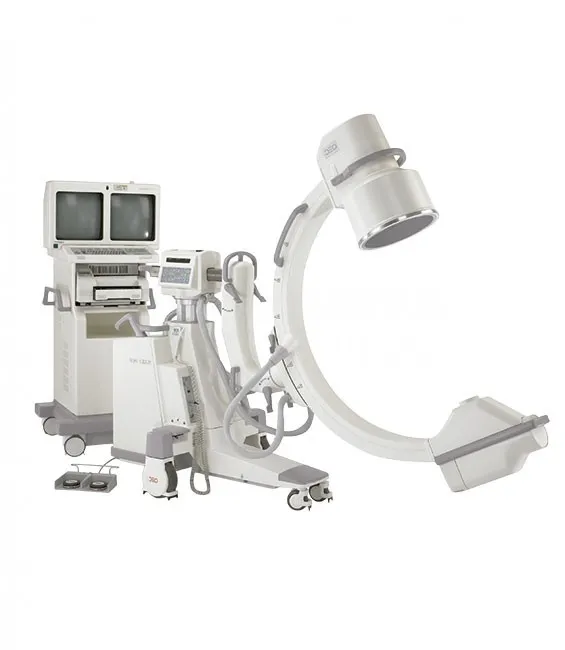

OEC 9800

Description

Superb image quality from our proprietary Image I.Q.
Clinical design which is ideal for a wide range of applications.
Improved efficiency thanks to a simple user interface.
SMART options – SmartMetal, SmartView and SmartWindow help perfect your
technique in challenging situations.
Low dose features that ensure the right image at the right dose.
Precise positioning with the SmartView off-axis pivot joint
SmartMetal, SmartWindow and Autotrak features automatically adjust contrast and
brightness to produce the clear image you need
Imaging modes are simple when you image with the most-used C-arm interface in the
world

Optional packages:

GSP
ESP
ESP 8 FPS
Vascular
Vascular 8/15 FPS
Neurovascular 30 FPS
Cardiac 30 FPS
Super C

Generator:

60 kHz High frequency
15 kW full-wave
Up to 120 kVp
Up to 75 mA for radiographic film exposures.
Continuous fluoro boost mode up to 20 mA
Pulsed fluoro mode
Pulsed fluorography mode up to 40 mA. (optional)
Full power from outlet:
50 Hz or 60 Hz
100V-15A to 240V-10A.

Tube :

Rotating anode X-ray tube.
Focal spots: 0.3 mm and 0.6 mm.
Anode heat capacity: 300,000 HU.
Anode cooling rate: 60,000 HU/min.
Housing heat capacity: 1,600,000 HU.
Anode diameter: 3.1 in.
Anode angle: 10°.
X-ray tube cooling fan. (Vascular, Neurovascular & Cardiac units.)

Collimator:

Iris collimation with dual opposing semi-transparent leaf shutters allow elliptical, round and
rectangular collimation.
Minimum beam size < 5 X 5 cm2.
Iris and shutters are continuously variable.
All functions remotely controlled from the C-Arm control panel.

Fluro mode:

Focal spot: 0.3 mm
kVp range: 40 – 120 kVp
mA range: 0.2 – 10 mA normal mode
mA range: 0.2 – 20 mA continuous fluoro boost mode.
Auto and manual modes.
Continuous, one-shot or pulsed operation.
ABS varies mA, kVp, and camera gain.
User-specific ABS tables

Pulsed fluoro mode:

Focal spot: 0.3 mm.
kVp range: 40 – 120 kVp.
mA range: 0.2 – 10 mA
Pulse rate: 1, 2, 4, or 8 pulses per second.
Pulse width: 30 or 50 milliseconds.
Computer-controlled ABS, mA, kVp and camera gain.
Pulsed fluorography mode [optional]
Focal spot: 0.3 mm.
kVp range: 40 – 120 kVp.
mA range: 0.2 – 10 mA
Pulse rate: 1, 2, 4, or 8 pulses per second.
Pulse width: 30 or 50 milliseconds.
Computer-controlled ABS, mA, kVp and camera gain.
Digital spot mode:
Focal spot: 0.3 mm.
kVp range: 40 – 120 kVp.
mA range: 1.0 – 75 mA.
Automatically terminates exposure and stores enhanced image to storage archival disk.

Radiographic mode:

Focal spot: 0.3 mm or 0.6 mm.
Focal spot automatically selected.
kVp range: 50 – 120 kVp.
0.3 mm – mAs range: 1 – 100 mAs.
0.6 mm – mAs range: 110 – 300 mAs.
9” image intensifier:
ri-mode 9 in/6 in/4.5 in image intensifier
9 in.: 2.3 lp/mm.
6 in.: 3.2 lp/mm.
4.5 in.: 3.8 lp/mm.
DQE: 65%. (typical)
12” image intensifier:
Tri-mode 12 in/9 in/6 in image intensifier:
12 in.: 1.7 lp/mm.
9 in.: 2.3 lp/mm.
6 in.: 3.0 lp/mm.
DQE: 65%. (typical)

Video camera:

High resolution CCD camera.
1,004 x 1,004 pixels.
Full frame capture.
360° motorized rotation.
On-screen orientation indicator. (real-time feedback without fluoro.)
Left-right image reversal
Top-bottom image reversal.
Negative mode.
Computer controlled features:
Gain
Blanking
Camera iris

Video monitors:

Dual 16 in, black etched, anti-glare, anti-static.
Touch Screen Display.
Ambient room light sensor.
Multi-LED X-ray “ON” indicator.
Remote window/level controls.

Hardcopy options:

Thermal printer. (optional)
DICOM (optional)
Image Capture Device. (optional)
Laser Aiming Device. (optional)
