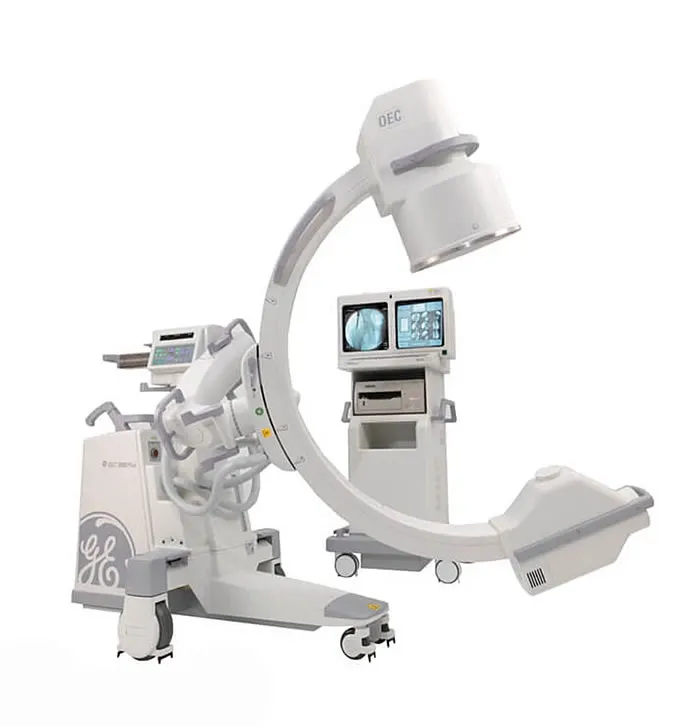

GE OEC 9600

Description

PACKAGES:

GSP
ESP
Vascular
Vascular: 4/8/15 fps
Neurovascular: 30 fps
Cardiac: 30 fps
Super C

Generator:

High frequency
4.0 kW full-wave
Up to 120 kVp
Up to 75 mA for radiographic film exposures
Continuous fluoro boost mode up to 12 mA (optional)
Pulsed fluoro mode
Pulsed fluorography mode up to 40 mA
Full power from outlet:
50 Hz or 60 Hz
15A to 2
40V-8APatented energy buffer design

X Ray tube:

Rotating anode X-ray tube
Focal spots: 0.3 mm and 0.6 mm
Anode heat capacity: 300,000 HU
Anode cooling rate: 60,000 HU/min
Housing heat capacity: 1,600,000 HU
Anode diameter: 3.1 in
Anode angle:
8.5 in (9-inch Image Intensifier)
10 in (12-inch Image Intensifier)
X-ray tube cooling fan (Vascular, Neurovascular & Cardiac units)

Collimator:

Iris collimation with dual opposing semi-transparent shutters allow elliptical, round and
rectangular collimation
Iris and shutters are continuously variable
All functions remotely controlled from the C-Arm control panel
Pulsed fluoro mode [ optianol]
Focal spot: 0.3 mm
kVp range: 40 – 120 kVp
mA range: 0.2 – 5.0 mA
Pulse rate: 1, 2, 4, or 8 pulses per second
Pulse width: 30 or 50 milliseconds
Computer-controlled ABS, mA, kVp, and camera gain
Digital spot mode [optional]
Standard with the Expanded Surgical Platform (ESP)
Enhanced digital fluorographic one-shot with 12 mA boost
Automatically terminates exposure and stores enhanced image to storage archival disk
Radiographic mode
Focal spot: 0.3 mm or 0.6 mm
Focal spot automatically selected
0.3 mm – mAs range: 1 – 100 mAs
0.6 mm – mAs range: 110 – 300 mAs
kVp range: 50 – 120 kVp

9” image intensifier:

Tri-mode 9 in / 6 in / 4.5 in image intensifier
Minimum central resolution (at the monitor):
9 in.: 1.4 lp/mm
6 in.: 2.0 lp/mm
4.5 in.: 2.4 lp/mm
DQE: 65% (typical)
12” image intensifier
Tri-mode 12 in / 9 in / 6 in image intensifier
Minimum central resolution (at the monitor):
12 in: 1.0 lp/mm
9 in: 1.3 lp/mm
6 in: 1.6 lp/mm
DQE: 65% (typical)

Video camera:

High-resolution CCD camera
Full frame capture
360° motorized rotation
On-screen orientation indicator (real-time feedback without fluoro)
Left-right image reversal
Top-bottom image reversal
Negative mode
Video signal: Standard RS 170A 60 Hz, 525 lines
Aspect ratio: 4:3
Computer-controlled features:
Gain
Blanking
Camera iris

Video monitors:

Dual 16 in square, black etched, anti-glare, anti-static
525 lines/frame – 512 pixels
Ambient room light sensor
Multi-LED X-ray “ON” indicator
Remote window/level controls

Hardcopy options:

Thermal printer
External DICOM box
Image Capture Device
Laser aiming device

Specifications

Dual 16″ High Resolution Flicker Free Monitors
Tri-Mode 9″/6″/4.5″ Image Intensifier
Rotating Anode X-ray Tube (0.3mm & 0.6mm) Focal Spots
4.0 kW High Frequency Generator
12 mA Fluoro Boost
High Resolution CCD Camera
10 bit Digital Image Processing
200 Image Storage
Collimator with dual opposing shutters
MARS-Motion Artifact Reduction System
Frame Averaging
Last Image Hold (LIH)
Output to Floppy Disk
Thermal Printer
Multiple specialty packages available; GSP, ESP, Vascular, and NeuroVascular
